DC Axial Fan

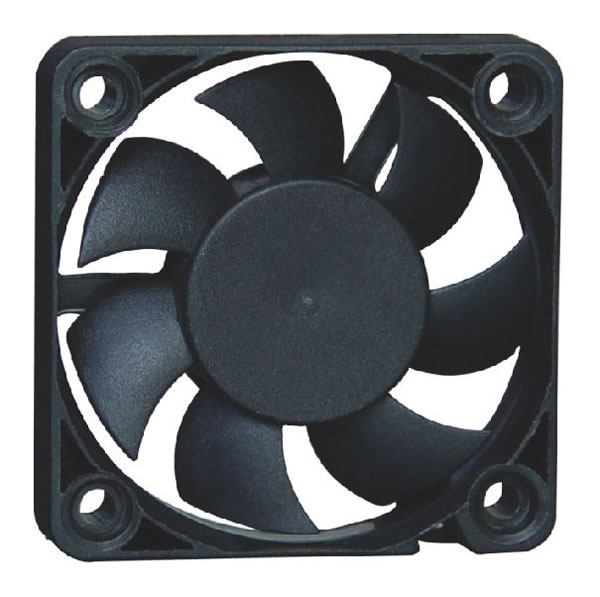

50x50x10mm DC Axial Fan

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Power (Watts) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
50X50X10 PD50S-12L 12 0.07 0.84 4000 7.80 1.80 25.12 19
PD50S-12M 12 0.08 0.96 4500 8.66 2.25 27.06 19
PD50S-12H 12 0.10 1.20 5000 10.06 2.63 29.08 19
PD50S-24L 24 0.06 1.44 4000 7.80 1.80 25.21 19
PD50S-24M 24 0.07 1.68 4500 8.66 2.25 27.06 19
PD50S-24H 24 0.10 2.40 5000 10.06 2.63 29.08 19
