DC Axial Fan

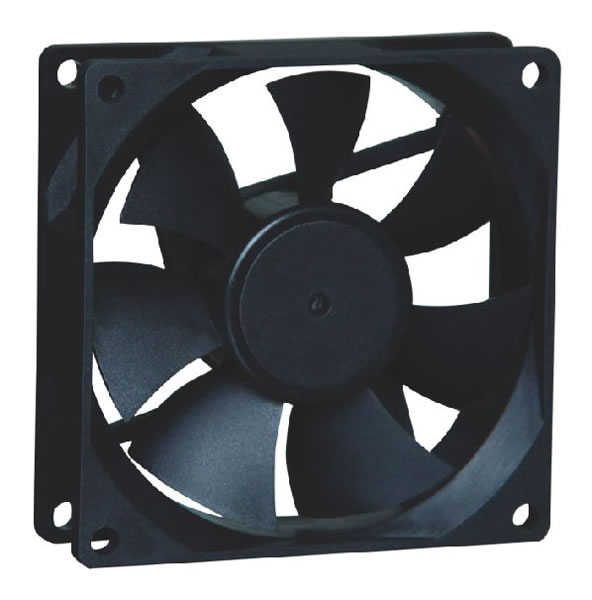

80x80x25mm DC Axial Fan
Technical Parameters of the DC Axial Fan
| Dimension (mm) |
Model |
Voltage (VDC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (Inch/H2O) |
Noise (dBA) |
Weight (Gram) |
| 80X80X25 |
PD80S-12L |
12 |
0.10 |
1.20 |
2000 |
25.46 |
1.63 |
24.25 |
75 |
| PD80S-12M |
12 |
0.12 |
1.44 |
2400 |
32.23 |
2.56 |
27.85 |
75 |
| PD80S-12H |
12 |
0.20 |
2.40 |
3000 |
38.56 |
3.48 |
32.60 |
75 |
| PD80B-12L |
12 |
0.08 |
0.96 |
2000 |
25.46 |
1.63 |
24.25 |
75 |
| PD80B-12M |
12 |
0.12 |
1.44 |
2400 |
32.23 |
2.56 |
27.85 |
75 |
| PD80B-12H |
12 |
0.20 |
2.40 |
3000 |
38.56 |
3.48 |
32.60 |
75 |
| PD80S-24L |
24 |
0.10 |
2.40 |
2200 |
15.60 |
1.26 |
26.32 |
75 |
| PD80S-24M |
24 |
0.12 |
2.88 |
2600 |
19.32 |
1.96 |
30.72 |
75 |
| PD80S-24H |
24 |
0.16 |
3.84 |
3000 |
23.67 |
3.26 |
33.60 |
75 |
