High Temperature Wire

Use: electrical source wiring for household appliances, lamps, lanterns and electric machinery and others where there is high operating temperature.

Silicone rubber wire, high temperature wire
Model: AWM3135 and SRI
Conductor material: stranded tin plated copper
Insulation material: silicone rubber
Temp.: -60℃- +200℃
Rated working voltage: 600VAC
Size of conductor
a) 0.3mm2, 0.5mm2, 0.75mm2, 1.0mm2, 1.25mm2, 1.5mm2, 3mm2, 3.5mm2, 4.0mm2, 5.5mm2, 6.0mm2, 8.0mm2, 10.0mm2, 12.0mm2, 16.0mm2, 22.0mm2
b) AWG22, AWG20, AWG18, AWG17, AWG16, AWG14, AWG12, AWG10, AWG8, AWG6, AWG4, AWG2, AWG0, AWG0/2
Color: black, white, red, green, yellow, brown, orange, blue, purple

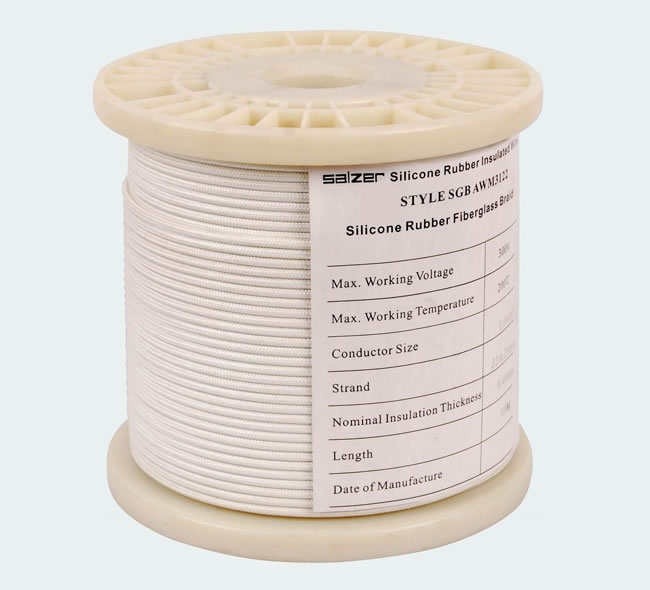

Silicone rubber fiberglass wire, high temperature wire
Model: AWM3122 and SGB
Conductor material: stranded tin plated copper
Insulation material: silicone rubber
Jacket: fiberglass braid
Temp.: -60℃-+200℃.
Rated working voltage: 300VAC
Size of conductor
a) 0.3mm2, 0.5mm2, 0.75mm2, 1.0mm2, 1.25mm2, 1.5mm2, 3mm2, 3.5mm2, 4.0mm2, 5.5mm2, 6.0mm2, 8.0mm2, 10.0mm2, 12.0mm2, 16.0mm2, 22.0mm2
b) AWG22, AWG20, AWG18, AWG17, AWG16, AWG14, AWG12, AWG10, AWG8, AWG6, AWG4, AWG2, AWG0, AWG0/2
Color: black, white, red, green, yellow, brown, orange, blue, purple

Teflon fiberglass wire, high temperature wire
Conductor material: stranded nickel plated copper or pure nickel
Insulation material: Teflon
Jacket: fiberglass braid
Temp.: -60℃~ 250℃
Rated working voltage: 300VAC
Size of conductor
a) 1.0mm2, 1.25mm2, 1.5mm2 ,2.5mm2,3mm2, 3.5mm2, 4.0mm2, 5.5mm2, 6.0mm2, 8.0mm2, 10.0mm2
b) AWG18, AWG16, AWG14, AWG12, AWG10, AWG8, AWG6, AWG4, AWG2, AWG0, AWG0/2

Mica fiberglass wire, high temperature wire
Conductor material: stranded nickel plated copper or stranded pure nickel
Insulation material: mica
Jacket: fiberglass braid
Temperature.:
Stranded nickel plated copper: -60℃~300℃
Stranded pure nickel: -60℃~500℃
Rated working voltage: 300VAC and 600VAC
Size of conductor
a) AWG20, AWG18, AWG16, AWG14, AWG12, AWG10, AWG8, AWG6, AWG4, AWG2, AWG0, AWG0/2

As a China-based high temperature wire manufacturer and supplier, Salzer provides a broad range of products that includes a fan filter, changeover switch, isolator switch, AC axial fan, push button switch, analog ammeter, and others.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
