SAP Padlock Switch

SAP Padlock Switch

SAP series padlock switch is the derivative of SA series switches. The switch is installed in equipment where it requires a padlock to lock the switch in certain position. For instance, fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.

General Information
Current: 16A, 25A, 32A, 63A, 125A, 160A
Function: OFF-ON
Panel size: M1 (48X48mm), M2 (64x64mm), M3 (88x88mm)

Ordering Information
Type: SAP①/②-③
① Rated thermal current ( 16A, 25A, 32A, 63A, 125A or 160A)

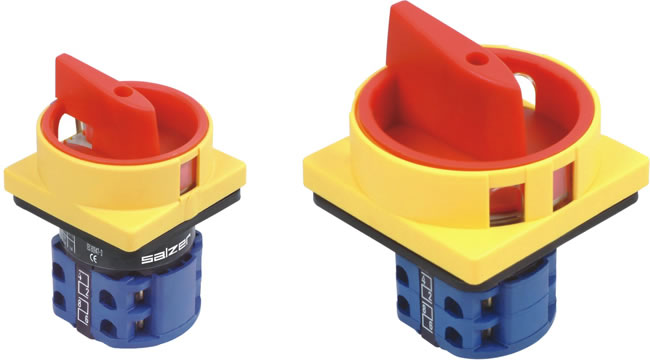

② 04: stand for urgent stopping type, yellow base and red handle
     03: stand for ordinary type, black base and black handle
③ Mounting size:M1, M2, M3

Technical Parameters of the SAP Padlock Switch

Description SAP16/□-□ SAP25/□-□ SAP32/□-□ SAP63/□-□ SAP125/□-□ SAP160/□-□
Rated insulation voltage Ui V 660/690 660/690 660/690 660/690 660/690 660/690
Rated working voltage Ue V 440 440 440 440 440 440
Rated thermal current Ith A 16 25 32 63 125 160
Rated working current Ie
AC-21A A 16 25 32 63 100 150
AC-22A A 16 25 32 63 100 150
AC-23A A 13 22 30 57 90 135
Rated control power
AC-23A kW 7.5 11 15 30 45 75
Switch life
Non-load   8500 8500 8500 8500 8500 8500
Load   1500 1500 1500 1500 1500 1500
Total   10000 10000 10000 10000 10000 10000

As a China padlock switch manufacturer and supplier, Salzer provides a vast range of products that includes our on-off cam switch, high temperature wire, changeover switch, AC axial fan, flush push button switch, LED indicator, and more.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
