DC Axial Fan

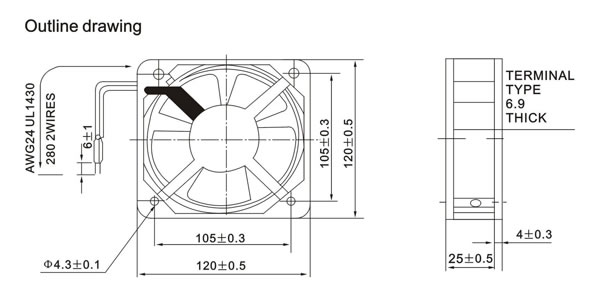

120x120x25mm DC Axial Fan

Technical Parameters of the DC Axial Fan

Dimension (mm) Model Voltage (VDC) Current (AMP) Power (Watts) Speed (RPM) Air Flow (CFM) Pressure (Inch/H2O) Noise (dBA) Weight (Gram)
120x120x25 PD120S-12L 12 0.24 2.64 1800 50.60 2.41 34.4 138
PD120S-12M 12 0.33 3.96 2050 61.38 2.97 38.0 138
PD120S-12H 12 0.37 4.44 2200 72.64 3.45 39.2 138
PD120S-24L 24 0.14 3.36 1800 50.60 2.41 34.4 138
PD120S-24M 24 0.17 4.08 2050 61.38 2.97 38.0 138
PD120S-24H 24 0.19 4.56 2200 72.64 3.45 39.2 138
