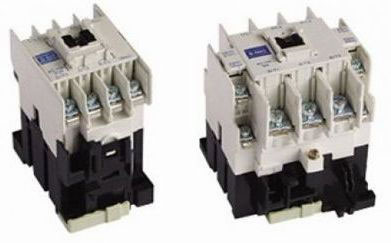

S-N Series AC Contactor

Application
S-N series AC contactors are suitable for AC 50Hz or 60Hz, rated voltage up to 660V, mainly used as putting through long distance, breaking circuit and frequently starting to control AC motor. It can also be used for counter-connection breaking of squirrel-cage motor in the case of reducing working current.




Specifications

Contactor type S-N 10 S-N 11 S-N 12 S-N 18 S-N 20 S-N 21 S-N 25 S-N 35 S-N 50 S-N 65 S-N 80 S-N 95
Rated operating current in 220V(A) 11 13 13 18 22 22 30 40 50 65 85 105
Rated operating current in 380V(A) 9 12 12 16 22 22 30 40 50 62 85 85
Rated operating current in 660V(A) 5 7 7 9 9 9 12 17 26 35 52 65
Control motor power under AC-3(KW) at 220V 2.5 3.5 3.5 4 5.5 5.5 7.5 11 15 18.5 22 30
at 380V 4 5.5 5.5 6 11 11 15 18.5 22 30 45 55
at 660V 4 5.5 5.5 5.5 7.5 7.5 11 15 22 30 45 55
Coil consumption at rated coil voltage(V) 3.5 3.5 3.5 3.5 5.3 5.3 5.3 5.3 5.3 2.8 2.8 3.3 3.3
Rated frequency of operating Ops/hr 1800 1200
Mechanical life under 1X106
