DC Axial Fan

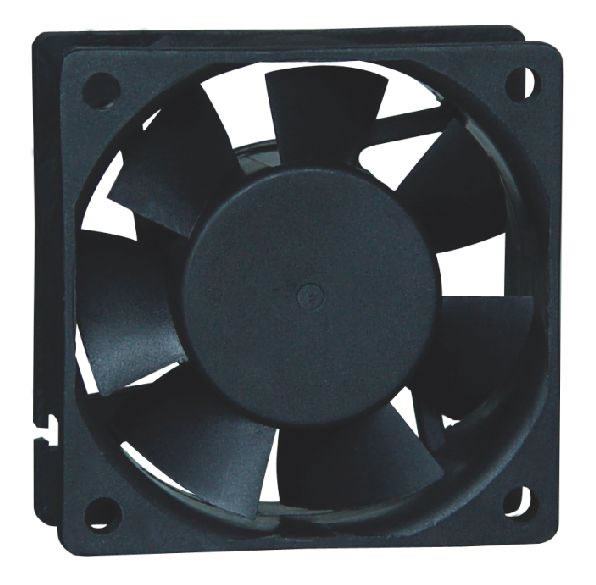

60x60x25mm DC Axial Fan
Technical Parameters of the DC Axial Fan
| Dimension (mm) |
Model |
Voltage (VDC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (Inch/H2O) |
Noise (dBA) |
Weight (Gram) |
| 60X60X25 |
PD60S-12L |
12 |
0.08 |
0.96 |
2500 |
7.96 |
1.26 |
19.68 |
56 |
| PD60S-12M |
12 |
0.10 |
1.20 |
3000 |
9.87 |
1.76 |
22.46 |
56 |
| PD60S-12H |
12 |
0.14 |
1.68 |
4000 |
13.39 |
3.42 |
28.54 |
56 |
| PD60S-24L |
24 |
0.08 |
1.92 |
2500 |
7.97 |
1.26 |
19.68 |
56 |
| PD60S-24M |
24 |
0.12 |
2.88 |
3000 |
9.87 |
1.76 |
22.46 |
56 |
| PD60S-24H |
24 |
0.14 |
3.36 |
4000 |
13.39 |
3.42 |
28.54 |
56 |
