AC Axial Fan

Home » Products » Axial Fan » AC Axial Fan » Φ220x61mm AC Axial Fan
AC Axial Fan

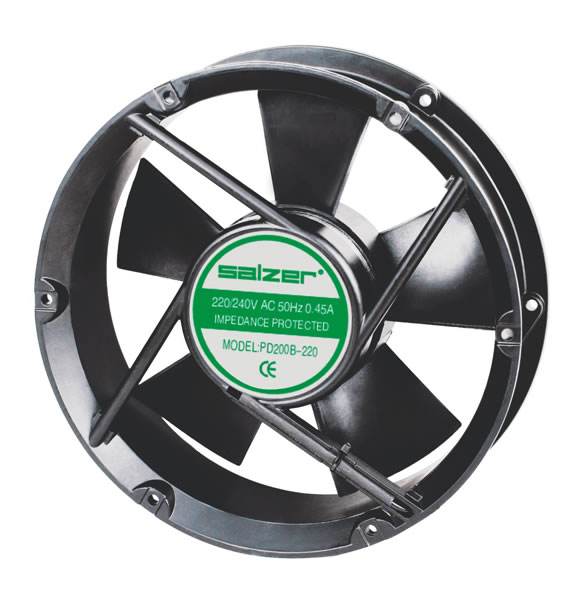

Φ220x61mm AC Axial Fan

Technical Parameters of the AC Axial Fan

Dimension
(mm)		 Model Voltage
(AC)		 Frequ-
ency
(Hz)		 Current
(AMP)		 Power
(Watts)		 Speed
(RPM)		 Air Flow
(CFM)/M3
/min		 Pressure
(Inch/H2O)		 Noise
(dBA)		 Weight
(Gram)
Φ220x61 PD200B-110 115 50 0.80 65 2300 254/7.19 0.58 56 1610
PD200B-220 230 50 0.45 70 2500 285/8.07 0.65 60 1610
PD200B-380 380 50 0.28 70 2500 285/8.07 0.65 60 1610
