AC Axial Fan

Home » Products » Axial Fan » AC Axial Fan » 80x80x38mm AC Axial Fan
AC Axial Fan

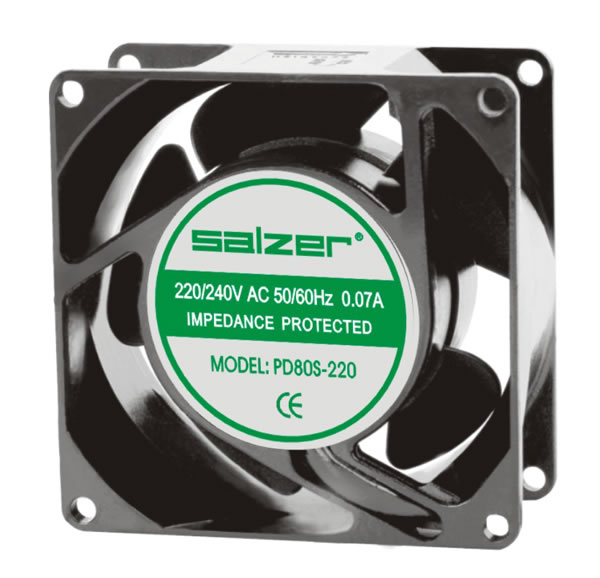

80x80x38mm AC Axial Fan

Technical Parameters of the AC Axial Fan

Dimension
(mm)		 Model Voltage
(AC)		 Frequency
(Hz)		 Current
(AMP)		 Power
(Watts)		 Speed
(RPM)		 Air Flow
(CFM)/M3/min		 Pressure
(Inch/H2O)		 Noise
(dBA)		 Weight
(Gram)
80X80X38 PD80S-110 115 50 0.15 15 2300 24/0.68 0.12 25.5 320
PD80S-110 115 60 0.13 11 2800 29.8/0.84 0.17 31.2 320
PD80S-220 230 50 0.07 16 2300 24/0.68 0.12 25.5 320
PD80S-220 230 60 0.06 12 2800 29.8/0.84 0.17 31.2 320
80X80X38 PD80B-110 115 50 0.15 15 2300 24/0.68 0.12 25.5 320
PD80B-110 115 60 0.13 11 2800 29.8/0.84 0.17 31.2 320
PD80B-220 230 50 0.07 16 2300 24/0.68 0.12 25.5 320
PD80S-220 230 60 0.06 12 2800 29.8/0.84 0.17 31.2 320
