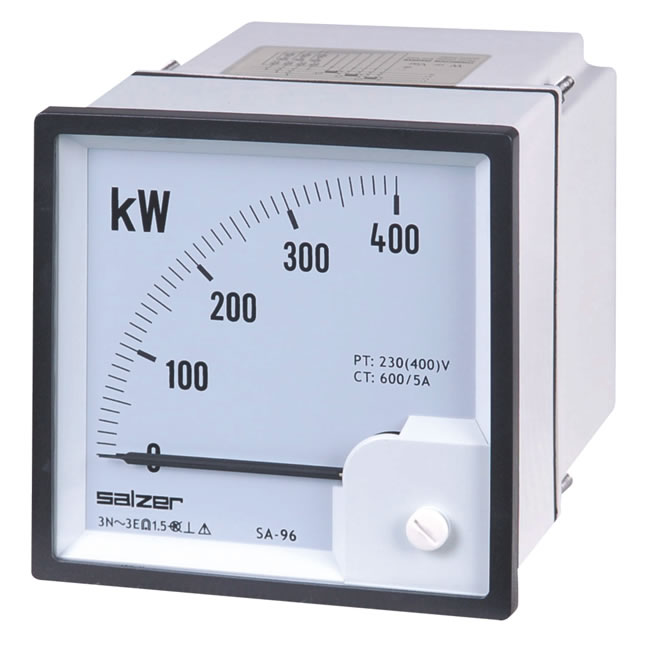

Analog Power Meter

Features: With cover on the moving needle(F), without cover on the moving needle(C).
Model: 90DEG: SA-W(Var)96, SA-W(Var)72
Frequency: 50Hz or 60Hz
Specification: 100W, 200W...1KW, 2KW...1MW, 2MW...6MW
Accuracy: Class1.5.
Voltage: (Single phase): 100V, 220V, 380V.
                (Three phase three wire): 100V, 220V, 380V, 415V.
                (Three phase four wire): 100VAC, 2220(380)VAC, 240(415)VAC.
Above mentioned can be connected directly.
The following should be connected with voltage.
Transformers: 380/100V, 500/100V, 3K/100V, 6K/100V, 10K/100V, 15K/100V, 5K/100V....
Current: 1A or 5A
The voltage circuit of the analog power meter can be connected with voltage transformers whose secondary voltage is 100V. If the secondary voltage is lower than 450V, it also can be connected directly. If the current is over 10A, the current circuits have to be connected with current transformer whose secondary current is 5A or 1A. If the current is not over 10A, it can be connected directly according to actual current. Wattmeters and Varmeters with converter for three-phase three wires or four wire and single phase, which can be used for balance and unbalance burden circuit.
Heat Resistance: Case of non-combustible plastic material.
Fastening: By means of nuts, side by side, absolutely safe.
Mounting Depth: 96: Max 43mm, 72: Max 113mm

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
