SAK Cam Switch B Series

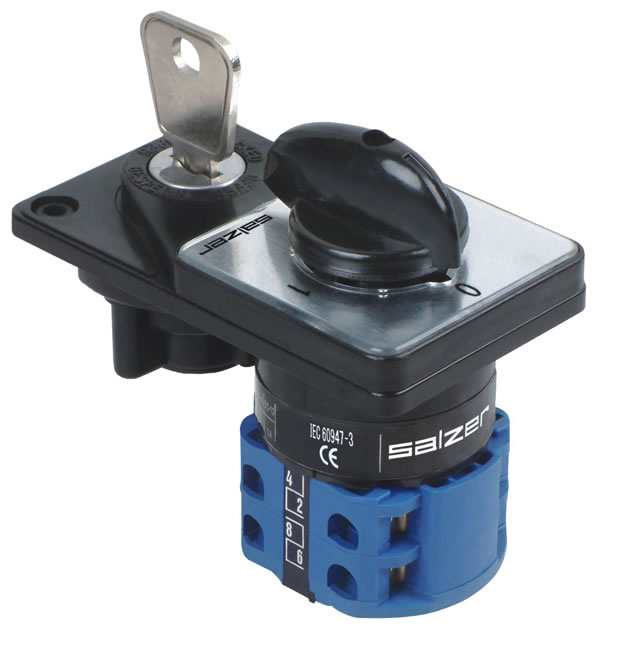

The product shown here is our SAK-B series cam switch.
Current: 16A, 25A, 32A, 63A
Plate size: M1 48X48MM, M2 64X64MM
Function: OFF-ON, 0-1, 1-0-2, A-O-M, Multi-step switch and so on

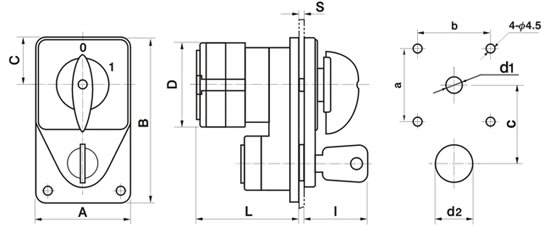

Given below is some information on the cam switch's dimension and installation.

Description Dimension(mm) Installation(mm)
A B C D L I S a b c d1 d2
SAK16-B 48 84 24 43 51.5 32.5 1 ~4 36 36 40 Φ8.5 Φ20
SAK25-B 48 84 24 45.2 58 32.5 1 ~4 36 36 40 Φ8.5 Φ20
SAK32-B 64 112 32 58 85 34 1 ~6 48 48 48 Φ10 Φ34
SAK63-B 64 112 32 66 104 34 1 ~6 48 48 48 Φ10 Φ34

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
