Multi-step Cam Switch

Multi-step Cam Switch

General Information

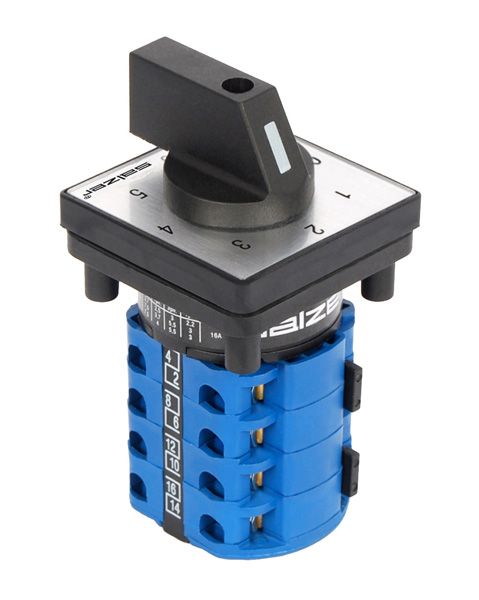

Multi-step Cam Switch Type: SA16-A-B
Max. Current: 16A
Max. Voltage: 690VAC
Plate Size: 48X48mm, 64x64mm
Faceplate: different types of faceplate are available, upon request.

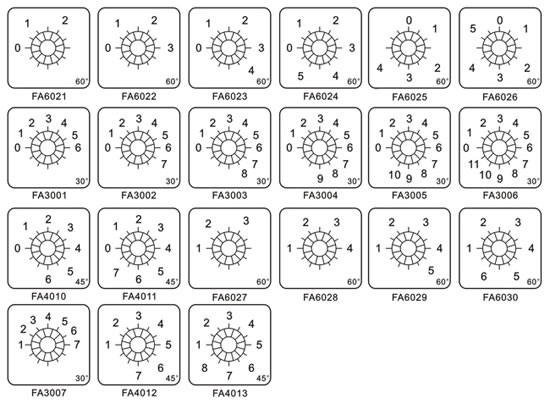

Degree of Rotation: 30°, 45°, 60°
Ingress Protection: IP20 with finger protection

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
