Home » Products » Axial Fan » AC Out Rotor Motor Fan » Φ250mm AC Out Rotor Motor Fan
AC Out Rotor Motor Fan

AC Out Rotor Motor Fan

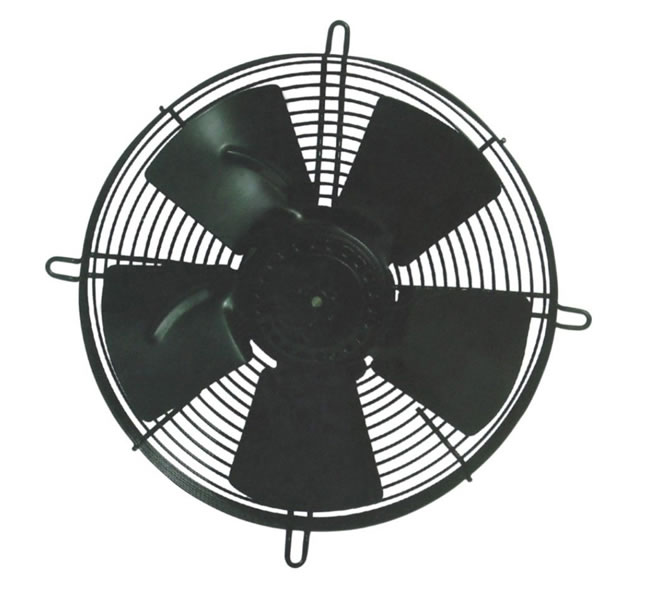

Φ250mm AC Out Rotor Motor Fan

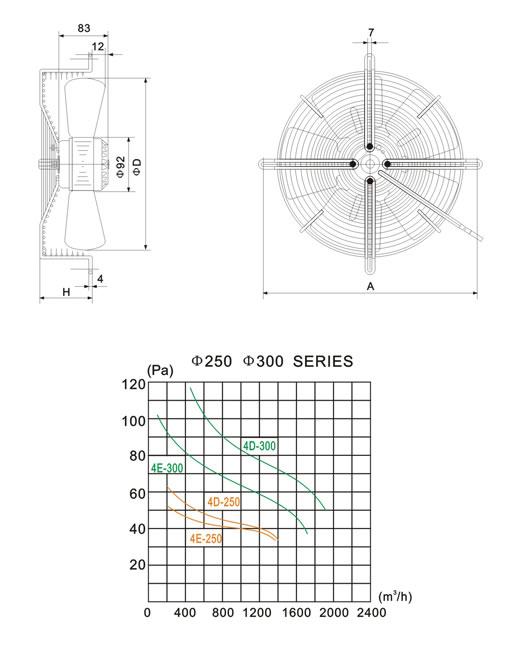

Technical Parameters of AC Out Rotor Motor Fan

Model Vol-
tage
(V)
Freq-
uency
(Hz)
Current (A) Input (W) Speed (r/min) Air volume (m3/h) Noise (dBA) Capa-
citor
(μF)
Approx. weight (kg) Size
A H ΦD
PD250S-4E 220 50 0.25 60 1400 1450 55 3 3.0 320 60 250
PD250S-4D 380 50 0.15 60 1400 1500 55 - 3.0 320 60 250

Φ300mm AC Out Rotor Motor Fan

Technical Parameters of AC Out Rotor Motor Fan

Model Voltage (V) Frequency (Hz) Current (A) Input (W) Speed (r/min) Air volume (m3/h) Noise (dBA) Capacitor (μF) Approx. weight (kg) Size
A H ΦD
PD300S-4E 220 50 0.37 80 1400 1750 58 3 3.3 360 80 300
PD300S-4D 380 50 0.20 80 1400 1820 58 - 3.3 360 80 300

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
