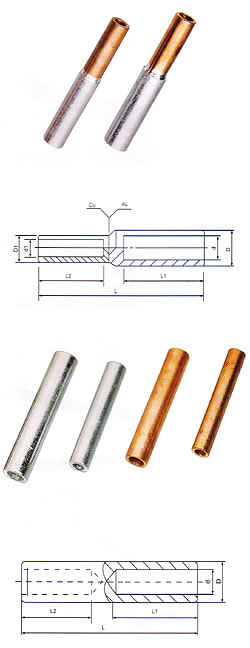

These products are applicable to connect the
circular wire and hemicycle wire in distribution equipment or
power supply cables.GT series hole-passing connection tube is
made of frition-welding craft,both top quality.
 |
| Type |
Dimensions(mm) |
| D |
d |
D1 |
d1 |
L1 |
L2 |
L |
| GTL-16 |
10 |
6 |
9 |
5 |
30 |
30 |
70 |
| GTL-25 |
11 |
7 |
9 |
6 |
33 |
30 |
75 |
| GTL-35 |
13 |
8.5 |
11 |
7 |
40 |
30 |
85 |
| GTL-50 |
14 |
9.8 |
12 |
8.5 |
42 |
32 |
95 |
| GTL-70 |
18 |
11.5 |
14 |
9.5 |
50 |
38 |
105 |
| GTL-95 |
20 |
13.5 |
16 |
11.5 |
50 |
40 |
110 |
| GTL-120 |
22 |
15 |
19 |
13.5 |
55 |
42 |
112 |
| GTL-150 |
24 |
17 |
21 |
15 |
55 |
44 |
118 |
| GTL-185 |
27 |
18.5 |
23 |
17 |
60 |
46 |
125 |
| GTL-240 |
30 |
21 |
26 |
18.5 |
60 |
54 |
130 |
| GTL-300 |
34 |
23 |
28 |
21 |
65 |
56 |
145 |
| GTL-400 |
45 |
27 |
30 |
23 |
70 |
60 |
155 |
| GTL-500 |
47 |
29 |
34 |
27 |
75 |
65 |
165 |
| GTL-630 |
54 |
35 |
38 |
29 |
80 |
70 |
180 |
| Type |
Dimensions(mm) |
| D |
d |
L1 |
L |
| GL-16 |
10 |
6 |
30 |
70 |
| GL-25 |
12 |
7 |
32 |
75 |
| GL-35 |
14 |
8.5 |
37 |
85 |
| GL-50 |
16 |
9.8 |
42 |
95 |
| GL-70 |
18 |
11.5 |
47 |
105 |
| GL-95 |
20 |
13.5 |
50 |
110 |
| GL-120 |
22 |
15 |
52 |
115 |
| GL-150 |
24 |
16.5 |
55 |
120 |
| GL-185 |
27 |
18.6 |
57 |
125 |
| GL-240 |
30 |
21 |
60 |
130 |
| GL-300 |
34 |
23 |
64 |
140 |
| GL-400 |
38 |
27 |
70 |
160 |
|
