APPLICATION:
This series solenoid valve adopts intergral slot throttle structure. The valve hole is processed with special high precision finishing technique. It is widely applied to pneumatic system. |
| MODEL |

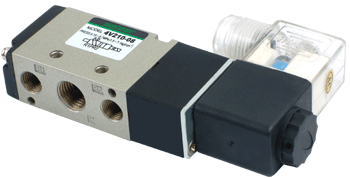

4V210-08 |
| Valve type |
5 port 2 position |
| Orifice size |
16mm2(Cv=0.89) |
| Port Size |
in=out=1/4", exhaust=1/8" |
| Lubrication |
not required |
| Pressure range |
1.5-8.0bar |
| Proof pressure |
12bar |
| Temperature |
-5~60°C(23~140°F) |
| Voltage range |
-15%~+10% |
| Power consumption |
AC380V 2.5VA, AC220V 2.0VA,AC110V 2.5VA
AC24V, 3.5VA, DC24V 3.0W, DC12V 2.5W |
| Insulation |
F class |
| Protection |
IP65 (DIN40050) |
| Connector |
socket with plug |
| Max frequency |
5 cycle / sec |
| Min frequency |
0.05sec |
| Weight |
220g |
|
|
 |
|
