APPLICATION:

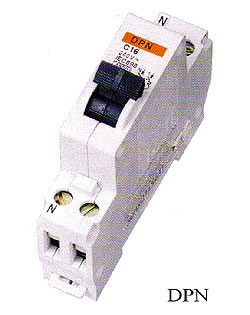

DZ30(DPN)series MCB,mainly used to protect line-conductor,overload
and short circuit of small motors,is mainly for protection of
circuits with AC220V,50Hz/60Hz,and for infrequent conversion
under normal conditions as well,its action can be as up to two-pole
with its only one pole volume and it can be as a leakage breaker
by assembling with leakage. |
SPECIFICATION:
| Rated voltage: |
220V |
| Rated current: |
6,10,16,25,32A |
| Breaking capacity: |
3KA |
| Mechanical and electric life: |
600times. |
| With pole: |
P+N=18mm |
| Accord with standards: |
IEC898-GB10963-89 B.S3871 |
|
DIMENSIONS:
|
 |
|
 |
|
