SPRUCTURE FEATURE:

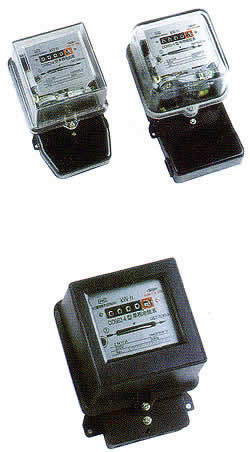

¡¡ The electromagnetic elements employing divided formation are in horizontal position of DD862 type watthour meter.The voltage cores of semi-enclosed and plug in type are used.Double-jewel bearing is used in the bearing system.The register consists of five or six large drum-shaped wheel with clear readout.In order to take precautious against stealing electricity,fixed direction register.Imitation cornudum is set on the driving axle of the register to reduce friction and keep stablity of data.Aluminium alloy by die cast,and have undergone heting and cooling processes,so have good mechanism characteristic.Magnetic bearing available.

TECHNICAL DATA:

Rated Voltage:220-240V

Accuracy:2.0

Basic Current:1.5(6)A 3(6)A
¡¡¡¡¡¡¡¡¡¡¡¡¡¡2.5(10)A 5(20)A
¡¡¡¡¡¡¡¡¡¡¡¡¡¡10(40)A 15(60)A
¡¡¡¡¡¡¡¡¡¡¡¡¡¡20(80)A 30(100)A
