APPLICATION:
RO14～RO17,Rt14,Rt18 and Rt19 series sealed pipe type cylindrical
fuses with filler are designed to work under a voltage rating
up to 500V AC,50Hz with a current rating up to 125A,and are
suitable for line protection against overload and hort-circuit.The
products can also be made into alternative models as RS14～RS17
rated at 500V AC,50Hz,125A max. For short-circuit protection
of semi-conductor components and equipment.
RATED INTERRUPT CURRENT:up to 100KA
CONFORMATIVE STANDARDS:JB/DQ4036-81
NOTES:Some models in this series can be made with indicators
or alarming accessories some can be made as"aM" type
for short-circuit protection of motors. |
 |

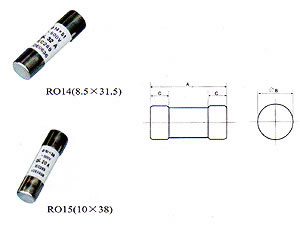

| Cat.No |
MRFL013 |
| Current Rating |
0.5,1,2,3,4,6
8,10,12,16 |
| Dimensions (mm) |
|
| Unit Weigh |
4 |
|
| Cat.No |
MRFL014 |
| Current Rating |
0.5,1,2,3,4,6,8,
10,12,16,20,25,32 |
| Dimensions (mm) |
|
| Unit Weigh |
7.6 |
|
 |
| Cat.No |
MRFL015 |
| Current Rating |
1,2,3,4,6,8,10,12
16,20,30,32,40 |
| Dimensions (mm) |
|
| Unit Weigh |
21 |
|

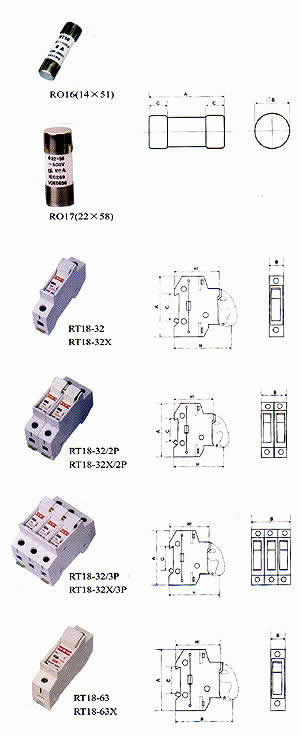

| Cat.No |
MRFL016 |
| Current Rating |
2,4,5,8,10,12
16,20,25,32,40
50,63,80,100,125 |
| Dimensions (mm) |
|
| Unit Weigh |
55 |
|

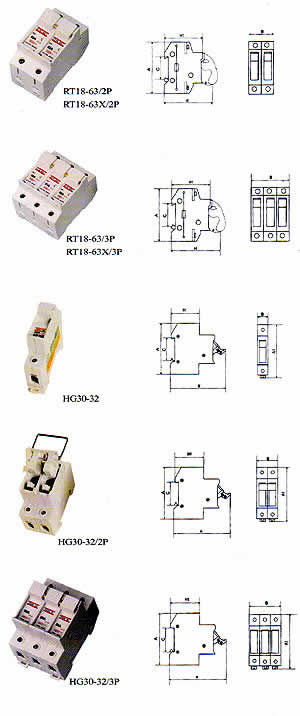

| Cat.No |
MRFH001 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 79 |
17 |
34 |
80 |
60 |
|
| Unit Weigh |
60 |
|
| Cat.No |
MRFH002 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 79 |
34 |
34 |
80 |
60 |
|
| Unit Weigh |
120 |
|
| Cat.No |
MRFH003 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 102 |
17 |
34 |
80 |
60 |
|
| Unit Weigh |
180 |
|
| Cat.No |
MRFH004 |
| Current Rating |
63 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 102 |
27 |
33 |
105 |
76 |
|
| Unit Weigh |
215 |
|
 |
| Cat.No |
MRFH005 |
| Current Rating |
63 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 102 |
54 |
33 |
105 |
76 |
|
| Unit Weigh |
410 |
|
| Cat.No |
MRFH006 |
| Current Rating |
63 |
| Dimensions (mm) |
| A |
B |
C |
H |
H1 |
| 102 |
81 |
33 |
105 |
76 |
|
| Unit Weigh |
215 |
|
| Cat.No |
MRFH007 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
A1 |
H |
H1 |
| 78 |
17.8 |
32 |
80 |
87 |
43.5 |
|
| Unit Weigh |
60 |
|
| Cat.No |
MRFH008 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
A1 |
H |
H1 |
| 78 |
36.5 |
32 |
80 |
87 |
43.5 |
|
| Unit Weigh |
120 |
|
| Cat.No |
MRFH009 |
| Current Rating |
32 |
| Dimensions (mm) |
| A |
B |
C |
A1 |
H |
H1 |
| 78 |
53.5 |
32 |
80 |
87 |
43.5 |
|
| Unit Weigh |
180 |
|
|
 |
|
