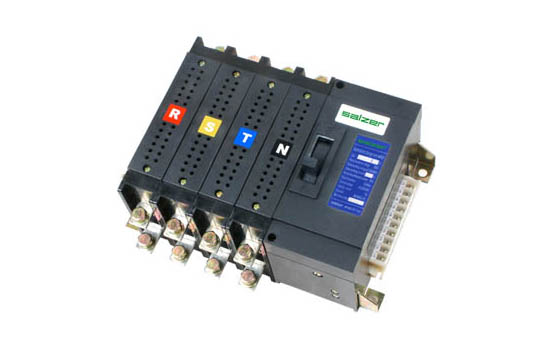

| 1.Scope of application |
|
SA5 series automatic change over switch are suitable for AC 50/60Hz,rated working voltage AC660V and the following automatic change over between main power source and emergency power supply. Besides applying to first class load, it also apply to high-ranking building,post and telecommunications,hotel and hospital,industry assembly, military installations,fire control,lift and so on. The rated controlling voltage of switch is AC 220V, reserve power can be the reserve electric wire net,diesel oil generator of emergent self-starting and battery. |
| 2.Type explaining |
 |
| 3.Main technical data |
| Rated working current(A) |
40 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
400 |
630 |
| Rated thermal current(A) |
40 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
400 |
630 |
| Rated insulation voltage(V) |
660 |
| Rated working voltage(V) |
380 660 |
| Short-time withstand current(KA) |
5 |
10 |
15 |
| Transfer time(S) |
≤0.1 |
| Mechanical life |
8000 |
6000 |
4000 |
| Electrical life |
4000 |
3000 |
2000 |
| Arc distance |
80 |
100 |
| Capacity of auxiliary contact |
5A AC250V 0.5A DC125V |
|
| 4.Normal condition of work |
|
Ⅰ.Ambient air temperature |
| |
•Maximum temperature ﹢40℃,the average doesn’t exceed ﹢40℃ in 24 hours. |
| |
•Minimum temperature -5℃. |
| |
•The average doesn’t exceed +35℃ in 24 hours. |
| |
Remarks: Temperature upper limit of ambient air exceed +40℃(For example:workshop forged and smelted 、boiler room and tropical area),lower limit is -10℃ or -25℃,users should consult with manufacturers. |
|
Ⅱ.Atmospheric condition |
| |
Atmospheric relative humidity under ambient air temperature +40℃ doesn't exceed 50%.There can be higher relative humidity under lower temperature，The equal largest relative humidity is 90% in the wettest month, at the same time the minimum temperature is +25℃ on average in this month, and consider fog on the surface of the products because of the temperature change. |
|
Ⅲ.Elevation |
| |
The elevation of the installation site doesn't exceed 2000m. |
|
Ⅳ.Grade of pollution |
| |
The grade of pollution of the installation site is tertiary. |
|
Ⅴ.Condition of installation |
| |
The switch should be installed vertically in the cabinet, and the vertical gradient is not larger than 22.5°. |
| 5.Movement principle |
|
When voltage relay of main power source finds the voltage signals changing (For example: over voltage or under voltage), voltage relay of emergency power supply operates immediately and links the time relay of its control at the same time. After time delaying, the middle relay links to supply power to the rectification bridge of its control, drives the electromagnetic coil of the controlling circuit, then switch operates, the circuit of main power disconnects, and emergency power supply is linked. When the main power source returns to normal, the voltage relay operates. After time delaying, the middle relay is on and supplies power to the rectification bridge and drives electromagnetic coil, then switch operates,the emergency power supply stops the power supply, and main power source recovers to supply power. |
| 6.Structure of the switch |
|

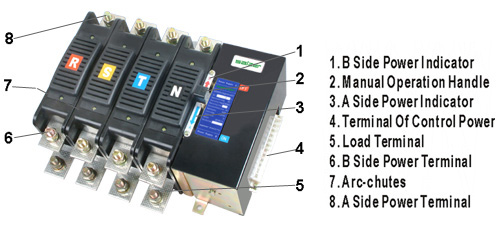

SA5 series automatic change over switch are composed of two parts: main contact system and control system. It is connected as an organic whole by the mechanical drive organization. The design is accurate and rational, electric and machinery are chained at the same time to guarantee the main power source and emergency power supply not to be linked at same time. The main contact adopts the silver tungsten alloy and silver carbon compound tungsten graphite which are able to bear the electric arc with strong ability to lengthen service life. Arc-chutes has strong quenching ability, and can realize the switch change over with load, it can also realize manual change over by handle 2 under no load. Adopting the electrodynamic electromagnetism drive and the direct current pulse operating, So it plays an important role on prolonging the coil life and saving the electric energy. Electric interval and creepage distance of the switch accord with the isolator standard, so it has isolated functions. A1,A2 and B1,B2 are the terminals of the two groups power control wire.The switch keeps 2 groups of auxiliary contacts (A1,A3,B1,B3) or 3 groups of auxiliary contacts (A3,A4,A5,B3,B4、B5) to serve the purpose of other at same time. |
 |

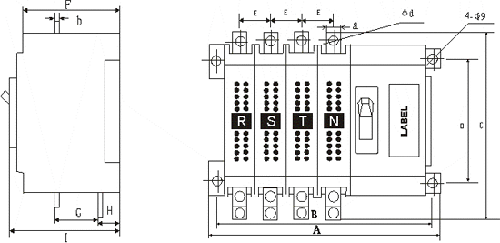

| 7.Shape and mounting dimension (mm) |
 |
 |
| 8.Application example |
 |
| 9.Major items |
|
Ⅰ.Installation should be done by professional personnel, and corresponding protection and precautionary measures should be considered in the work. |
|
Ⅱ.Please check carefully whether the listed technical parameter on the data plate meets
requirements before installing, and also have to check if any terminal’s screw is
loosed during transportation.
|
|
Ⅲ.The sequence of the main and emergency power must be kept in same for the first switch circuit, the grade of voltage must be noticed for the second control circuit, and wiring way should not be altered. |
|
Ⅳ.Forbid operating with handle under load. |
|
Ⅴ.We guarantee the quality one year from the shipping date. |
| 10.Random file |
|
Products operation instructions. |
