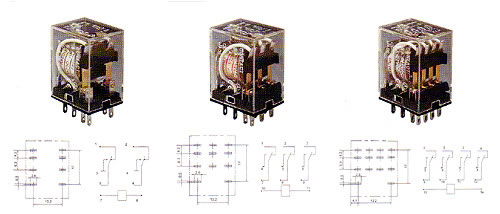

Model MY2 MY3 MY4
Contact Capacity DC28V AC220V 5A DC28V AC220V 3A
Coil Power DC≤0.9W AC≤1.2VA
Contact Resistance ≤50mΩ
Insutation Resistance ≥100MΩ
Coil Voltage DC6V～220V AC6V～380V 50/60Hz
Operating Temperature -40℃～+55℃
Socket fitted with PYF08A PYF08A-E PYF08B PYF11A PYF11A-E PYF11B PYF14A PYF14A-E PYF14B
Service Life Mechanical 107
Electrical 105
Terminal Outlet and Printed-circuit board FLANGE
Like product OMRON、MY2、
S为手动按钮，N为带灯，F为法兰式 MY2N MY3F MY4F
Extermal Dimension 27.5×21×35mm

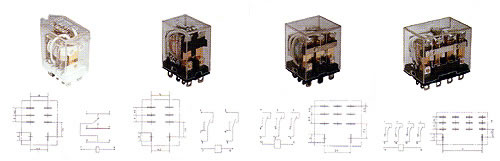

Model LY1 LY2 LY3 LY4
Contact Capacity DC28V AC220V 15A DC28V AC220V 10A
Coil Power DC≤0.9W AC≤1.2VA DC≤1.5W AC≤2.5VA
Contact Resistance 50mΩ
Insutation Resistance ≥100MΩ
Coil Voltage DC6V～220V AC6V～380V 50/60Hz
Operating Temperature -40℃～+55℃
Socket fitted with PTF08A PTF08A-E PTF11A PTF11A-E PTF14A PTF14A-E PTF14B

Service Life

 Mechanical 107
Electrical 105
Terminal Outlet and Printed-circuit board FLANGE
Like product OMRON:LY1富士通公司HH61 OMRON:LY2富士通公司HH63 OMRON:LY3富士通公司HH63 OMRON:LY4富士通公司HH62、DZ-47
S为手动按钮，N为带灯，F为法兰式 LY1N LY2N LY3N LY4N
External Dimension 37×21×35mm 27.5×31×35mm 27×41×35mm

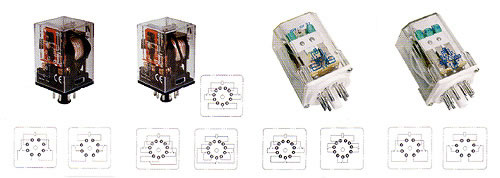

Model MK2P-1 MK3P-1 JQX-10F(JTX) JQX-10F(JTX)
Contact Capacity DC28V AC220V 10A
Coil Power DC≤2W AC≤3.5VA
Contact Resistance ≤50mΩ
Insutation Resistance ≥500MΩ
Coil Voltage DC6V～220V AC6V～380V 50/60Hz
Operating Temperature PF083A -40℃～+55℃ PF113A PF113A-E PF083A PF083A-E
Socket fitted with
Service Life Mechanical 107
Electrical 105
Terminal Outlet Solder
Like product OMRON MK2P H,K FRM5 Outlet solder OMRON MK3P H,K FRM5 OMRON MK2P H,K FRM5
External Dimension 34.7×34.7×52mm

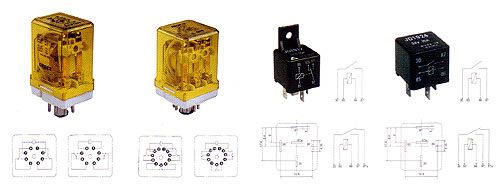

Model RR2P RR3P JD1912F JD1912
Contact Capacity DC24V AC220V 10A DC12V 5A 20A 30A AC240V 5A 10A DC12V 5A 20A 30A AC24V 5A 10A
Coil Power DC≤2W AC≤3.5A DC≤1.8W
Contact Resistance ≤50mΩ
Insutation Resistance ≤500MΩ ≥1000MΩ
Coil Voltage DC6V 220V AC6V 380V 50/60Hz DC5V 110V 50/60Hz
Operating Temperature -40℃ +55℃
Socket fitted with PF083A PF083A-E PF113A PF113A-E CS-3770
Service Life Mechanical 107
Electrical 105
Terminal Outlet solder Outlet solder,Outlet
Like product   JQX-2TF 德国 4RA

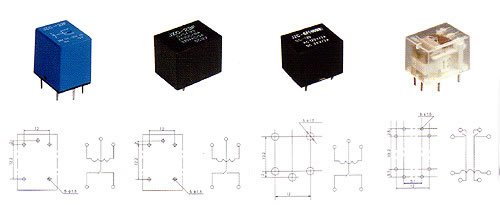

Model JZC-22F 4123 4098 4099
Contact Capacity DC24V AC220V 5A 7A 12A 15A DC24V AC110V 5A 7A 10A DC28V AC120V 2A
Coil Power DC≤0.45W DC≤0.36W
Contact Resistance ≤50mΩ
Insutation Resistance ≥100MΩ
Coil Voltage DC3V～48V DC5V～48V DC3V～24V DC6V～220V AC6V380V 50/60Hz
Operating Temperature -25℃～+55℃ -30℃～+55℃ -25℃～+55℃ -40℃～+55℃
Service Life Mechanical 107
Electrical 105
Terminal Printed-circuit board
External Dimension 19.9×16.2×19.6mm 22.5×16.5×16.5mm 19×16×14.5mm 16.5×21×15mm

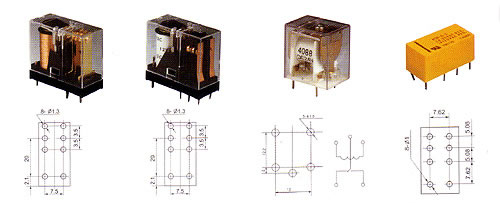

Model JQX-14F 1Z JQX-14F 2Z 4088 JRC 19F
Contact Capacity DC30V AC220V 10A DC30V AC220V 5A DC28V AC220V 5A DC24V 1A
Coil Power DC≤0.55W DC≤0.36W
Contact Resistance ≤50mΩ
Insutation Resistance ≥1000MΩ ≥100MΩ
Coil Voltage DC3V 48V DC3V 24V
Operating Temperature -40℃ +55℃ +55℃ -25℃ +55℃
Service Life Mechanical 107
Electrical 105
Terminal Printed-circuit board Printed-circuit board
External Dimension 28.9×12.8×24.5mm 22.5×16.7×23.5mm 21×10×12mm

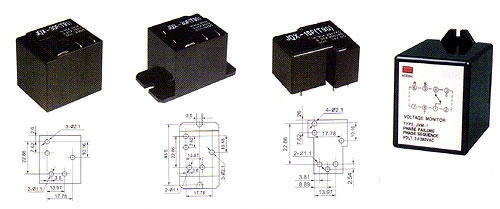

Model JQX-30F(T91) JQX-30FA(T91) JQX-16F(T90) JVM-1
Contact Capacity DC28V AC220V 20A 30A DC30V AC220V 15A 20A 30A
Coil Power ≤0.9W
Contact Resistance ≤50mΩ
Insutation Resistance 1000MΩ
Coil Voltage DC5V 110V 50/60Hz
Operating Temperature -55℃ +85℃
Service Life Mechanical 107
Electrical 105
Terminal Printed-circuit board Printed-circuit board FLANGE Printed-circuit board
External Dimension 32.5×27.5×20.4mm
