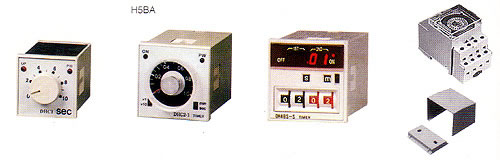

Model DHC1 DHC2 DHC2-H DH48S-S(Twin Timer) SUL181
Time Range 0.1S-1h 0.1S-10h 1s-99m 48time/day
Display Mode     UP
Power Supply AC220V (AC110V AC240V)50/60Hz;(DC24)85%-110% AC220V 45/60Hz
Dimension 36×36×81mm 48×48×105mm 48×48×96mm 92×52.5×65.5mm
Accuracy ≤5%FS+0.05s ≤5%FS+0.05s ≤0.3%+0.05s
Programmable 1C 2C 1C
Output Arrangement 3A AC250V 3A AC250V 3A AC250V 16A AC250V
≥10×106 ≥10×106 ≥10×106 ≥10×106
life Expectancy LED Points LED Points 0.25 inch LED
Panel Cutout 33×33MM 45×45mm 45×45mm
Display A4(E4 B4) A4 S
Power Consumption 3VA 7VA 3VA

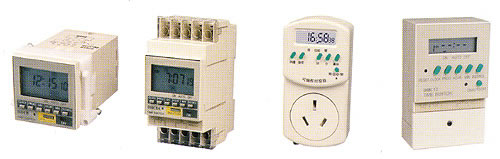

Model DHC8 DHC8A KS01 KS02 DHC12
Time range 1 day or 1 week 1 day or 1 week 1 day 1 day
Power supply AC220V(AC110V AC 240V)50/60Hz 80%-110%
Dimension 48×48×96mm 50×100×66mm 123×60×68mm 92×56×38mm
Accuracy 1s/day 1s/day 1s/day 2s/day
Programmable 9time/week or day 9time/week or day 9time/day 9time/day
Output Arrangement 12A AC250V 1C 12A AC250V 1C 10A AC250V 16A AC250V 8A AC250V
Life Expectancy ≥10×106 ≥10×106 ≥10×106 ≥10×104
Panel Cutout 45×45mm
Display LCD with back light LCD LCD LCD
Power Consumption 4VA 4VA 4VA 4VA

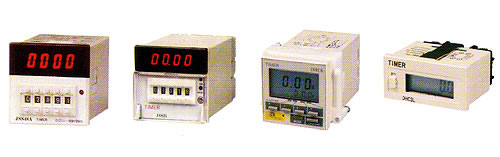

Model JSS48A JSS48B JSS25 DHC6 DHC3L
Time Range 0.01S-99h99m 0.01S-99h99m 0.01S-999.9h(9999h) 0.0-99999.9h
Display Up/Down Up/Down Up/Down Up
Power Supply AC 220V(AC110V AC240V)50/60Hz,(DC24V) 85%-110% SELF POWER
Dimension 48×48×96mm 72×72×133mm 48×48×96mm 24×48×50mm
Accruacy ≤0.01%+0.05s ≤0.03%+0.05s

≤0.01%+0.05s


Output Arrangement 2C 1C 2C &NPN OC 30V 100mA 1C
3A AC250V 5A AC250V 3A AC250V 3A AC250V
Life Expectancy ≥10×10 6 ≥10×106 ≥10×106 10year
Display 0.3 inch LED 0.4 inch LED LCD with back light
Panel Cutout 45×45mm 68×68mm 45×45mm
Power Consumption 3VA 4VA 3VA
