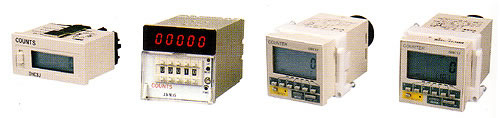

| Model |
DHC3J |
JDM15 |
DHC1J |
DHC1J-D2P（2 SET） |
 |
| Counting range |
999999 |
999999 |
999999 |
999999 |
| Counting speed |
30cps(MAX) |
30/2000cps(MAX) |
25/2000cps |
30/2000cps |
| Power supply |
SELF POWER |
AC220V 50/60Hz 85%-110% |
DC 12V(DC 24V) |
| Dimension |
24×48×50mm |
72×72×133mm |
48×48×96mm |
48×48×96mm |
| Input Signal |
Switch &Solid-state |
Switch &Solid-state |
Switch &Solid-state |
Switch &Solid-state |
| Contract output |
|
3A AC250V |
3A AC250V |
3A AC250V |
| Sold-state output |
|
NPN OC 100mA 30V |
NPN OC 100mA 30V |
- |
| Power for senser |
|
DC 12V 30mA(MAX) |
DC 12V 30mA(MAX) |
- |
| Input mode |
UP |
Down & Up |
Up,Down& Up Down A,B,C |
Up,Down& Up Down A,B, |
| Output mode |
|
N,F,R |
N,F,C,R |
N,F,C,R |
| Memory retention |
10 year |
10 year |
10 year |
10 year |
| Panel cutout |
22.5×45mm |
68×68mm |
45×45mm |
45×45mm |
|
|
 |
|
